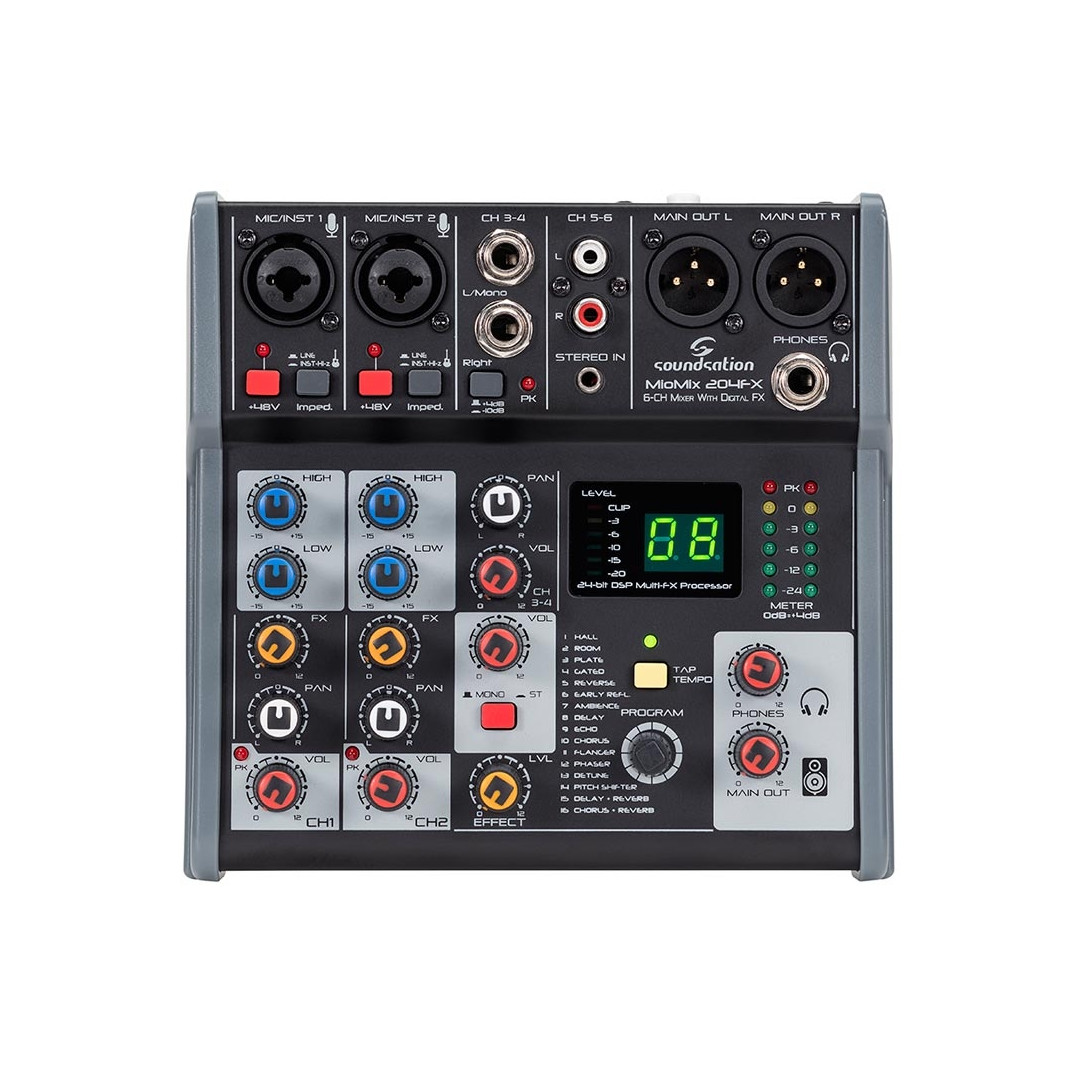

SOUNDSATION MIOMIX 204FX Κονσόλα ήχου

SOUNDSATION MIOMIX 204FX 6-Channel Professional Audio Mixer with 24-bit Digital Multi-Effect

6 Total Channels

2 Mic/Line channels with noiseless preamp, combo connector, Hi-Z input for guitars, +48V Phantom Power, Peak Indicator

1 Stereo Line Channel with Ό? Jack inputs, +4/-10dB Pad Adapter and Peak Indicator

1 Stereo Line Channel with RCA and 1/8? Stereo Mini-Jack

2-Band EQ for channels 1 and 2

24-bit/48kHz 16-Preset Digital Effect with TAP-Tempo and up to 2 adjustable Parameters

Headphone monitor out with level control

XLR Main Outputs with Master Level Control

Stereo 6-Led VU Meter Bar

Rugged and Lightweight Metal Case for Maximum Flexibility and Portability

Input Connections: Balanced XLR/Jack Combo (Channel 1-2), Balanced Ό? Jack (Channel 3-4), Stereo RCA, Stereo 1/8? Mini-Jack (Channel 5-6)

Output Connection: Balanced XLR (Main Out L-R), Stereo Ό? Jack (Phones)

Channel 1-2 Functions: +48V Phantom Power, Impedance switch (Line/Hi-Z), 2-Band EQ (80Hz/12kHz +/-15dB), Effect Send Level, Pan Position, Channel Volume, Peak Led Indicator

Channel 3-4 Functions: Impedance switch (+4/-10dB), Pan Position, Channel Volume, Peak Led Indicator

Channel 5-6 Functions: Channel Volume, Mono/Stereo Switch

Digital Effect: 24-bit Sigma-Delta, 256-times oversampling, 48kHz sampling rate

Level Meter: 2×6 LED Meter

Max Output Level: 3 Vrms

Frequency Response: +/-0.5dB, 20Hz-20kHz

Dynamic Range: 102dB

THD+N @ 1kHz: =0.003%

Stereo Crosstalk: 92dB

Power Requirements: DC 5V, 0.5A

Power Consumption: Max. 2.5W

Size (WxDxH): 166 x 165 x 66 mm

Packing Size (WxDxH): 300 x 208 x 87 mm

Net Weight: 0.9kg

Gross Weight: 1.2kg
